Syble 2D Barcode Scanner for Retail Store

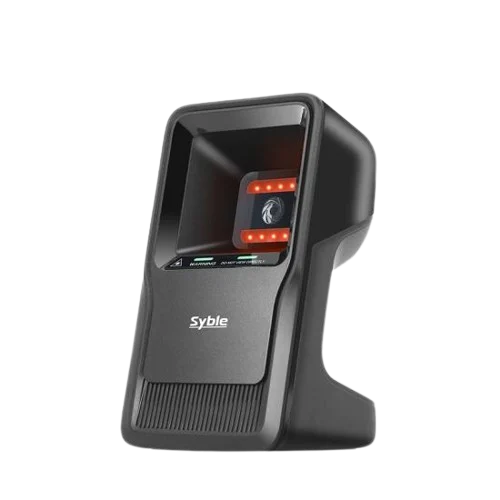

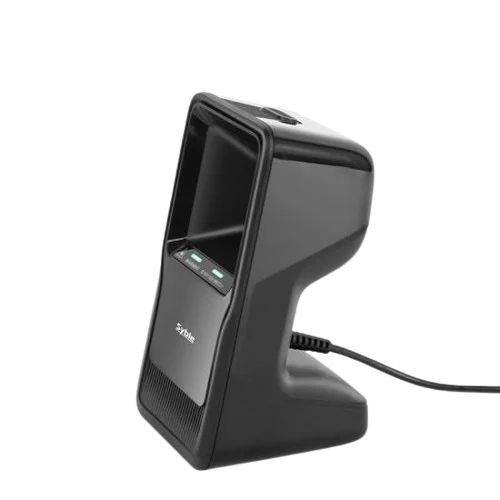

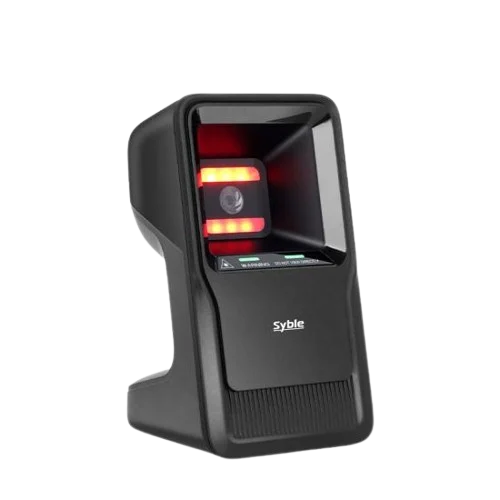

2D Small Desktop Barcode Reader (X80)

The X80 2D Small Desktop Barcode Reader is a reliable and high-performance scanner designed for fast and accurate barcode reading. It combines an attractive appearance, durable construction, and advanced scanning technology, making it an excellent choice for retail stores, supermarkets, libraries, and other checkout environments.

Elegant and User-Friendly Design

First of all, the X80 features a modern and stylish design with smooth product lines and an ergonomic shape. As a result, it can be used comfortably in both hands-free and handheld scanning modes while maintaining a professional appearance.

Durable and Premium Build Quality

In addition, the scanner is built using high-quality ABS and PC materials with a thickness of more than 3mm. This ensures excellent durability, a solid feel, and a premium texture that can withstand daily use.

Fast and Sensitive Scanning Performance

Furthermore, the X80 offers outstanding scanning sensitivity with speeds of up to 120 frames per second (FPS) and motion tolerance of up to 2 meters per second. This means users can quickly pass barcodes through the scanning window and receive instant results without delays.

Accurate Barcode Reading

Not only is the X80 fast, but it is also highly accurate. With a scanning precision of 4 mil, it can easily read small and detailed barcodes found on supermarket products, snack packaging, medicine boxes, clothing tags, tobacco products, and many other items.

Supports 1D and 2D Barcodes

Moreover, the X80 uses advanced 2D CMOS imaging technology to support virtually all common barcode formats. It can accurately read both 1D barcodes and 2D QR codes from printed labels as well as digital screens.

Flexible Development and Optimization

Another key advantage is its support for secondary development through SDK packages and technical assistance. Additionally, if difficult-to-read barcodes are encountered, remote barcode image analysis and decoding optimization can be provided to improve scanning performance.

Ideal Applications

Because of its speed, accuracy, and ease of use, the X80 is ideal for:

• Supermarkets | Retail stores | Clothing shops | Convenience stores | Pharmacies
• Libraries | Point-of-sale (POS) counters | Warehouse and inventory management

Key Specifications

Scanning Technology

• CMOS Imaging Sensor
• 640 × 480 Global Shutter Sensor
• Automatic Sensing Scan Mode

Barcode Support

• Supports common 1D barcodes including EAN, UPC, Code 128, Code 39, Codabar, ITF, MSI, and more.
• Supports 2D barcodes including QR Code, Data Matrix, PDF417, Aztec, Micro QR, and Micro PDF417.

Performance

• Scanning Accuracy: ≥ 4 mil
• Scan Range: 0–130 mm (EAN13 13mil)
• Scan Angle: 360° rotation, ±60° elevation, ±60° deflection

Connectivity

• USB Plug-and-Play
• USB-COM
• RS232

Physical Specifications

• Dimensions: 81 × 80 × 142 mm
• Weight: 255 g
• Material: ABS + PC
• Cable Length: 1.2 m

Electrical Specifications

• Operating Voltage: DC 5V ±5%
• Working Current: 220 mA
• Standby Current: 185 mA

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5%–95% (non-condensing)
• Ambient Light: 0–100,000 Lux
• Drop Resistance: Withstands drops of up to 1.5 meters

Summary

Overall, the X80 2D Small Desktop Barcode Reader delivers fast scanning, high accuracy, durable construction and broad barcode compatibility. Whether you are managing a supermarket checkout, retail store, library or inventory system, the X80 provides a dependable and efficient barcode scanning solution.
