RJ45 Cat6e connector

RJ45 Cat6e connector: Your High-Speed Network Starts Here.

An RJ45 Cat6e connector is a vital component. It terminates network cables. These cables are crucial for high-speed data. It forms the plug on the end of an Ethernet cable. This connector ensures reliable network performance.

Standard

Cat6e specifically refers to the cable standard. It’s an enhancement of Cat6 cable. It supports faster speeds and improved bandwidth. This makes Cat6e ideal for demanding networks. It’s often used in commercial settings. Many modern homes also benefit from it.

Materials

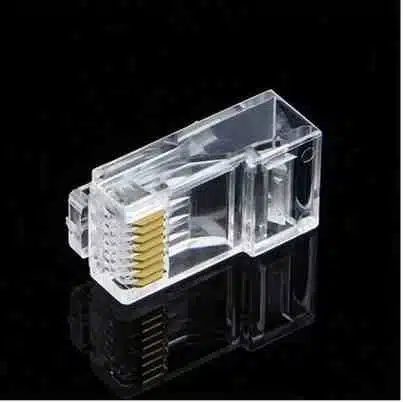

The RJ45 connector itself is a small plastic plug. It features eight pins or contacts. These pins align with the eight individual wires inside the Cat6e cable. Each wire carries specific data signals. The pins create an electrical connection. This connection transmits network traffic.

Termination

Proper termination is essential. Each wire must connect to the correct pin. The T568A or T568B wiring standards guide this process. These standards ensure compatibility. They allow different devices to communicate. Incorrect wiring causes network issues. It can lead to slow speeds or no connection.

An RJ45 Cat6e connector boasts specific design features. It often has a sturdy plastic housing. This protects the internal wires. The contacts are typically gold-plated. Gold plating resists corrosion effectively. It also ensures excellent signal conductivity. This maintains signal integrity.

These connectors are designed for easy crimping. Technicians use a specialized crimping tool. This tool secures the connector onto the cable. It pushes the pins into the wires. This creates a strong, permanent connection. Proper crimping is crucial for reliability.

The “e” in Cat6e indicates “enhanced.” It often refers to increased bandwidth. It supports frequencies up to 500 MHz. This is higher than standard Cat6 (250 MHz). This increased capacity reduces crosstalk. It also minimizes signal noise.

RJ45 Cat6e connectors are widely used. They connect computers to routers and link network switches. Found in server rooms and enable Power over Ethernet (PoE) applications. Their versatility makes them indispensable.

In summary

RJ45 Cat6e connector is critical. It provides robust, high-speed network connections. Its design ensures signal integrity. Proper installation is key for performance. It supports demanding network environments. This small plug powers vast communication networks.
