Maglock 280KG (600LB) Access Control System Single Door 12V Electric (Magnetic) Lock

Experience the Maglock 280KG access control system.

This powerful magnetic lock/Maglock secures single doors. It operates on a 12V DC power supply. TAKASHI store offers Access Control System this advanced security solution. They utilize leading international production methods.

This electromagnetic lock boasts superior holding force. It exceeds similar products by over 20%. Furthermore, its surface resists oxidation. This reaches international advanced levels. Therefore, it ensures long-term durability.

Maglocks find wide application. You can see them in airports. Subways also benefit from them. Banks and prisons use them too. Additionally, intelligent buildings incorporate this technology.

Installation

Installation is straightforward. It features an unfold design. The lock engages upon power-on. No residual magnetism remains. This prevents mechanical damage. It suits doors opening 90 degrees.

The Maglock works with framed doors. Frameless doors can use accessories. Inswinging doors also need extra parts. This single door electric lock is versatile. It fits glass doors and wooden doors. Small doors are also compatible.

Installation is simple and easy. Various accessories are available. These support inswing doors. They also assist glass doors. Narrow doorframe doors benefit too. A special design prevents residual magnetism. This enhances access control.

The holding force reaches 280kg (600LB). It operates on 12V DC. Current draw is 380-430mA. The working temperature range is wide. It performs from -10 to 55 Celsius (14 to 131 Fahrenheit). Humidity can be 0 to 95%.

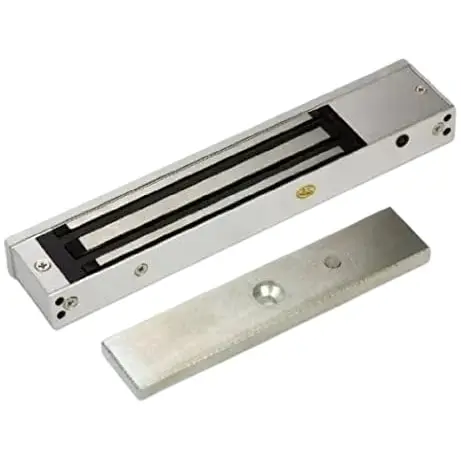

The lock operates in power-on to lock mode. The lock size is 25 x 4.7 x 2.5cm. Its weight is 1057g. The armature plate measures 18 x 3.9 x 1.1cm. It weighs 580g.

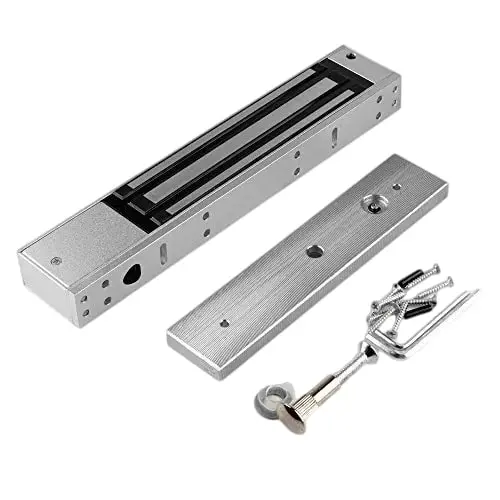

The package size is 27 x 6.3 x 6.3cm. The total package weight is 1786g. The box contains several items. You get one electronic magnetic lock. Also included is one armature plate. A bag of installation kit is provided. Finally, one pad completes the package. This system provides robust security.
