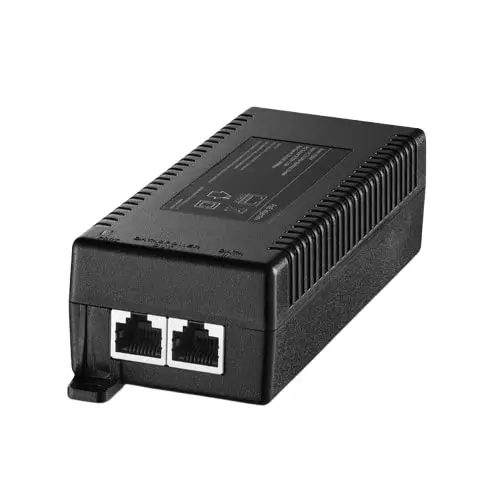

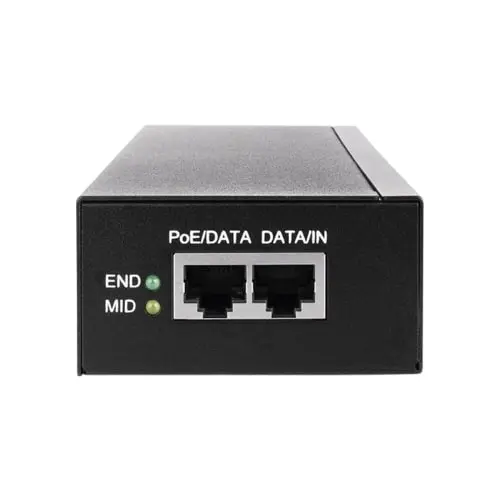

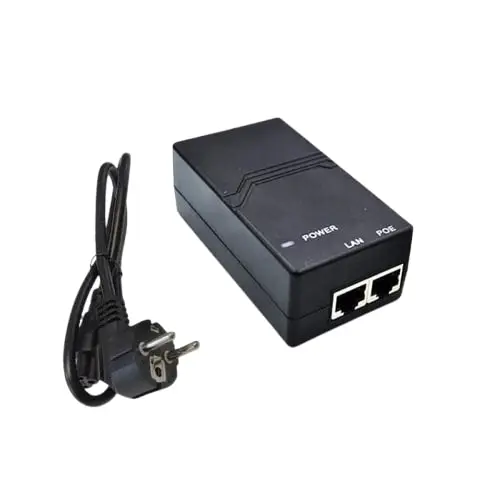

A PoE injector (Power over Ethernet) is a device that provides power to a network device through an Ethernet cable, while also allowing it to send and receive data. This eliminates the need for a separate power supply and simplifies network installations.
How PoE Injector Works:
Power Injection: The PoE injector takes power from a standard AC outlet and adds it to the Ethernet data cable (typically Cat5e or Cat6) that is used to connect to devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
Ethernet and Power Transmission: The Ethernet cable carries both data (from your router or network switch) and power (supplied by the injector) to the device. This allows the device to operate without the need for a separate power source.
Separation of Power and Data: On the receiving end, a PoE splitter or PoE-enabled device separates the power from the Ethernet cable and uses it to power up the device while the data continues to flow.
Main Components:
PoE Injector: The device that combines power and data into a single Ethernet cable.
PoE Splitter (if required): A device that separates the power from the Ethernet cable at the receiving end, so that the device can receive power through the appropriate input (e.g., 5V, 12V).
PoE Device: A device such as an IP camera, wireless access point, or VoIP phone that can receive power through Ethernet.
Types of PoE:
IEEE 802.3af (PoE): Provides up to 15.4 watts of power over the Ethernet cable.
IEEE 802.3at (PoE+): Provides up to 25.5 watts of power over the Ethernet cable.
IEEE 802.3bt (PoE++ or 4PPoE): Can deliver up to 60 watts (Type 3) or 100 watts (Type 4) of power over Ethernet.
Benefits of Using a PoE Injector:
Simplified Installation: You don’t need to worry about providing a separate power supply for devices, making installation cleaner and easier.
Cost-Effective: Reduces the need for additional electrical outlets, which can lower installation costs and complexity.
Flexibility: PoE injectors are great for situations where running separate power lines might be inconvenient or impractical (e.g., in ceilings or outdoor installations).
Improved Network Management: For businesses or larger setups, PoE injectors can help streamline your power management by using one network cable for both power and data.
Example Use Cases:
IP Cameras: Providing both data connection and power to cameras in locations without nearby electrical outlets.
Wireless Access Points (WAPs): Powering WAPs in hard-to-reach areas where running a power line would be difficult.
VoIP Phones: Connecting and powering VoIP phones using a single Ethernet cable, simplifying office setups.
If you’re looking to power a PoE-enabled device and don’t have a PoE-capable switch, a PoE injector is an ideal solution!
