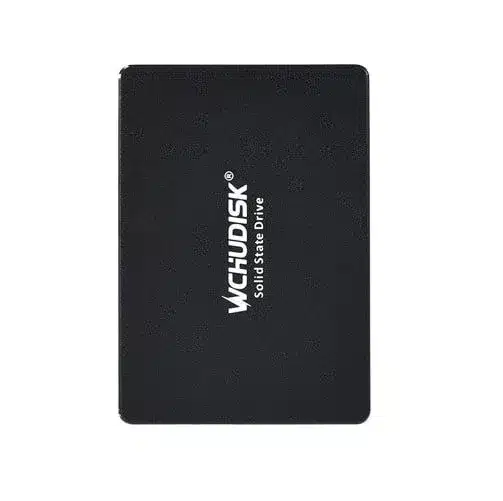

2.5 Inches 512GB SSD

Boost your device’s performance and storage capacity with the 2.5-Inch 512GB SSD Internal SSD or 2.5 Inches 512GB SSD which has 2.5-inch SATA interface a high-speed, reliable, and energy-efficient solution designed for laptops, desktops, and other compatible devices. Offering an exceptional balance of large storage capacity and blazing-fast performance, this SSD is ideal for both everyday computing and professional workloads.

---

Key Features of 2.5 Inches 512GB SSD:

1. Ample Storage Capacity:
   With 512GB of storage, this SSD provides plenty of room for your operating system, applications, games, multimedia files, and important documents, making it an excellent choice for both personal and professional use.
2. 2.5-inch SATA interface Form Factor:
   The standard 2.5-inch size ensures broad compatibility with most laptops and desktops, allowing for an easy upgrade without requiring special adapters or modifications.
3. Internal SSD High-Speed Performance:
   • Sequential Read Speeds: Up to 550MB/s
   • Sequential Write Speeds: Up to 500MB/s
     These speeds ensure quicker boot times, near-instantaneous application loading, and significantly faster file transfers compared to traditional hard drives.
4. Internal SSD is Durable and Reliable:
   Built with no moving parts, this SSD offers improved durability and resistance to shock and vibrations, ensuring reliable data protection even in demanding environments.
5. Low Power Consumption:
   Optimized for efficiency, the SSD reduces energy usage, extending the battery life of laptops and minimizing heat generation in desktops.
6. Internal SSD Enhanced System Performance:
   Features like TRIM support, S.M.A.R.T. monitoring, and wear-leveling technology help maintain peak performance and extend the drive’s lifespan.
7. Silent Operation:
   Unlike traditional hard drives, this SSD operates silently, making it an excellent choice for noise-sensitive environments like offices or home setups.

---

Benefits Internal SSD:

• Gaming Ready: Reduce game load times and store large gaming libraries with ease.
• Professional Use: Ideal for video editing, 3D modeling, and other storage-intensive tasks.
• System Upgrade: Replace old HDDs to breathe new life into older systems with faster performance and higher reliability.

---

Compatibility of 2.5 Inches 512GB SSD:

The 2.5-inch SATA interface ensures broad compatibility with most laptops, desktops, and external enclosures. Whether you’re upgrading an older system or building a new one, this SSD is designed to fit seamlessly into your setup.

---

Why Choose a 512GB SSD?

The 2.5-inch SATA interface 512GB SSD combines high performance, robust durability, and large storage capacity, making it a cost-effective solution for users looking to enhance their device’s speed, responsiveness, and reliability. Whether you’re a gamer, creative professional, or everyday user, this SSD delivers top-notch performance for all your storage needs.

2.5 Inch SSD is the standard form factor for an SSD is 2.5 inch, which fits inside the drive bay of most laptop or desktop computers. Because many users replace their hard drives with solid state drives, the 2.5″ sata drive has become a standard for all HDDs and SSDs, designed to allow compatibility for those upgrading.

M.2 SATA vs 2.5 SATA SSD: What is the Real Difference?

M.2 SATA and 2.5 SATA SSDs are the same in terms of performance. However, there is a size difference between the both. Because the M.2 SATA SSDs look like M.2 NVMe SSDs, people get confused between them.

A 2.5 inch SSD is called 2.5″ because of the drive’s physical size, specifically its width. The 2.5 inch refers to the width of the drive’s casing, which is roughly 2.5 inches across (about 69.85 mm). This is adopted from the 2.5″ hard drives and is standardized in both laptops and desktops. Also, because it works on the SATA interface, it becomes a perfect upgrade from a hard drive to an SSD.

The M.2 SATA SSD has the same specifications as the Internal SSD 2.5″ drives but in a smaller form factor. M.2 SATA is great for laptops because it doesn’t contribute to size and weight.

In simple words, the performance, power consumption, and software compatibility are exactly the same in both drives. So, it just depends on whether you want a bigger drive or a smaller one. However, there could be differences in physical compatibility and price. I will try to clear up all your confusion in this article.

Form Factor (Size)

As I discussed earlier, the 2.5 Inch SSD drives are bigger in size. Normally, you will see 100mm x 69.85mm x 7mm (or 9.5mm thick)** dimensions of these drives.

The M.2 SATA SSDs which generally come in 2280 form factor will come in 80mm x 22mm x 2.38mm (2280 size)** dimensions.

So, again, the 2.5 Inch SSD is made to fit inside the traditional 2.5″ HDD bays and enclosures. But, the M.2 SATA SSDs can work in their smaller and dedicated ports. Also, you can use these drives in M.2 NVMe ports.

Weight

The 2.5 Inch SSD can vary in weight ranging from 35g to 100g. This largely depends on the storage capacity and the brand. Also, sometimes, the case is going to be made of plastic and sometimes of metal. So, these things can contribute to the weight.

Some popular 2.5″  sata SSDs and their weights:

The M.2 NVMe SSDs generally have their weights from 5g to 8g. Some popular M.2 SATA SSDs and their weights:

If you look inside the 2.5″ SSD, the PCB size is generally smaller in storage size below 32GB. For larger capacities, there are multiple NAND Flash chips and those drives tend to be bulkier. But, the M.2 SSDs will vary in weight very less.

Performance Difference (M.2 SATA vs 2.5 Inch SSD)

Again, because these both are SATA drives, the interface is going to be the same. They are connected through the SATA ports which are controlled by the chipset on your motherboard. The limitation is that the SATA-3 (which is the top version of SATA) has a bandwidth of just 6Gb/s which calculates to around 770MB/s. The maximum effective speed in the real world is just 600 MB/s in any SATA drive because of the overhead that comes with the SATA interface.

There is no reason to compare these both in terms of read/write performance because both will give you the same results. Most of the popular 2.5 Inch SSD drives will also have their respective M.2 SATA variants. If you look at the specifications of both, you will find no difference. Even if you benchmark both, everything will be the same.

If we talk about the use cases, both 2.5 Inch SSD and M.2 drives are pretty popular. Most older laptops can only support the SATA drives. However, in demanding environments, these drives can create a little bottleneck where NVMe drives are more suitable. But, still, they are great because they are cheap and provide the best price-to-capacity ratio.

Especially for bulk storage like huge video files, the 2.5 Inch SSD drives are more suitable because the components are secured inside the casing. However, the M.2 SATA SSDs can be a great space saver.

Power Consumption

Power consumption is directly proportional to the work done over time inside any electronic component. Therefore, for SSDs that deliver the same performance, their power consumption will also be similar. Here is what you can expect from these drives.

SSD Type	Idle Power	Reading Data	Writing Data
2.5″ SATA	0.30 – 2 W	4.5 – 8 W	4.5 – 8 W
M.2 SATA	0.40 – 2 W	2.5 – 6 W	4 – 9 W

The power consumption is the same even though the sizes are different. Yes, because the total work done is the same.

You will hardly see any SATA SSD consuming more than 10 watts (still a high range) even during heavy work loads. You generally do not have to worry about temperature management as well.

These SSD power consumption numbers are surely going to vary depending from system to system. Size of data, total time running, heat, SSD model, and size, are some of the main things that contribute to SSD power consumption.

Compatibility

Software compatibility is the same for both drives. If a system recognizes one drive, it will recognize others as well. However, the physical compatibility is different because we talked about the form factor difference above.

2.5 Inch SSD drives use a standard 2.5-inch drive bay and SATA ports which are bigger in size than the M.2 SSDs. The M.2 SSDs require an M.2 slot, keyed for different interfaces (e.g., SATA or NVMe). I have talked about the M.2 drive keying in this article in detail.

2.5-inch SATA interface Installation

On desktop motherboards, you won’t find any 2.5 Inch SSD ports. There are L-shaped SATA ports that are combined with a SATA power connection from the PSU to connect with your drive. The SATA cable comes with the motherboard and your PSU will also have a SATA power connector for sure. However, in laptops with hard drive ports, you can easily install any 2.5 Inch SSD.

Inside laptops, you may have to use the given frame that attaches to all the 2.5″ drives and then you get to install it on the motherboard. You can easily find a guide for your specific laptop on YouTube.

In laptops, you can also install a 2.5″ SSD inside your DVD drive. You have to get a caddy like this one.

M.2 SATA SSD Installation

Installing an M.2 SATA SSD is pretty easy on both laptops and desktops. You just find the available M.2 port whether NVMe or SATA and install your drive. That’s it. Again, you can find guides for your specific system on the internet.

Price

Generally, the M.2 SATA variants of the same 2.5 Inch SSD drives are priced a little bit higher. The difference isn’t very high but you will have to pay 5 to 10 bucks extra for the M.2 SATA one. Larger capacity drives (1TB, 2TB) may show a bit more price variation, but it’s typically within a small range.

Some popular models like the Samsung 860 EVO, Crucial MX500, and WD Blue SA510 have both M.2 and 2.5″ variants. All of these M.2 variants are priced 5 to 8$ higher than the 2.5″ variants.

It could be the compact form factor of the M.2 drives that contribute to their price because of high-density components. Another reason could be the standardized connection type of the SATA drives. I also believe people have a conception that the M.2 drives are more advanced and have something special as compared to the standard 2.5″ drives. I could be wrong here but the manufacturers can take good advantage of this fact.

Internal SSD can be used by both PC and Laptop to increase speed
